2025 Legacy Marine NZ L35

All New Legacy Marine New Zealand  L35 Express Cruisers. This custom yacht can be designed perfectly for a Great Loop vessel or an everyday cruiser. Gas or Diesel power options are available. Inboard(s) or Outboard available

Brochure L35

35 Foot Sedan Cruiser

Welcome to a new era of Aluminium Sport Fishing Motor Yachts.

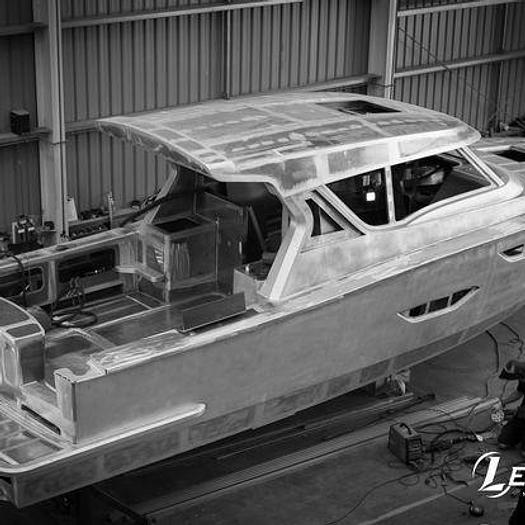

Legacy Marine has been established by New Zealand’s most awarded Aluminium Boat Manufacturer - Extreme Boats, which has been leading the Aluminium Boat building industry for over 20 years.

Crafted by skilled tradespeople with meticulous attentionto detail, each Legacy Sport Fishing Motor Yacht is designed to not only leave a wake in its path - but a Legacy!

It is time to live a life where experiences can not only be dreamed of but explored and cherished.

It is time to experience the exceptional!

L35

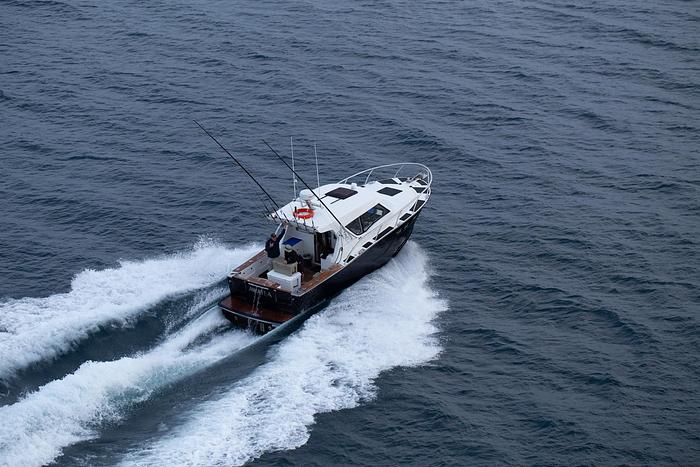

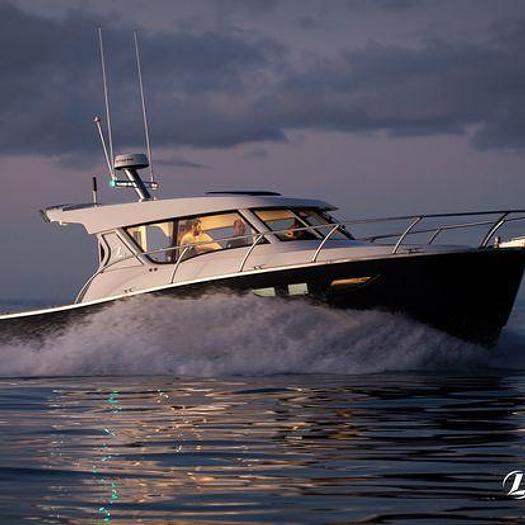

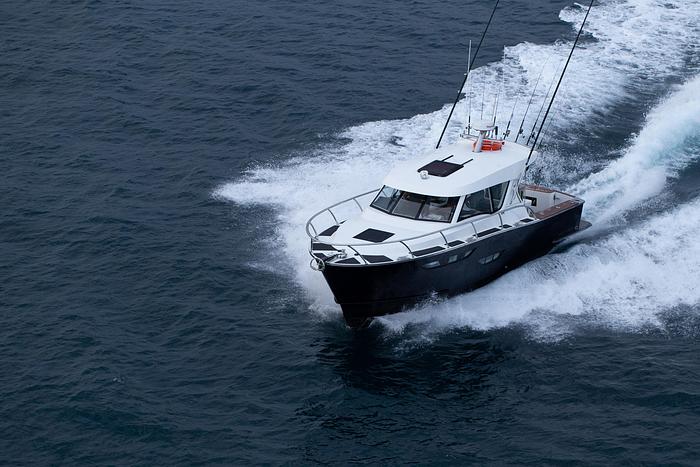

The L35 will transport you to the destinations you desire in ease, comfort and style. Designed for those wishing to explore offshore islands and coastline in a relaxed manner the L35 will leave the stresses of life in its wake!

L35

SPECIFICATIONS

Length overall Length over waterline Beam Fuel capacity Water capacity Sleeping cabins Sleeping capacity Engines Max speed

10.58 meters 9.32 meters 3.31 meters 700 litres 150 litres

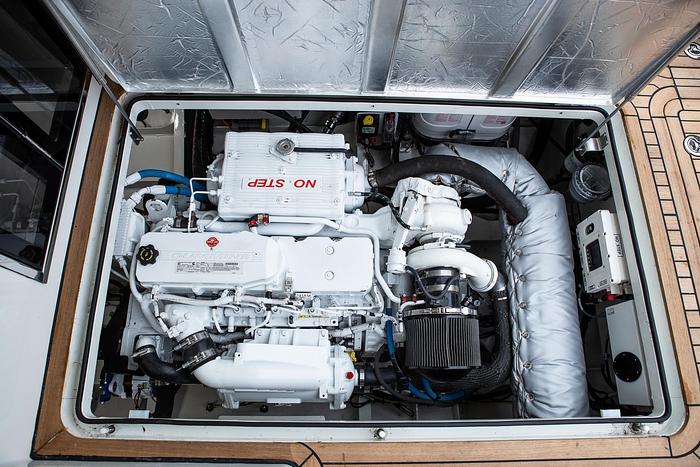

261 x Cummins QSB 6.7 480hp @ 3300rpm 30 knots

L435

STANDARD INCLUSIONS

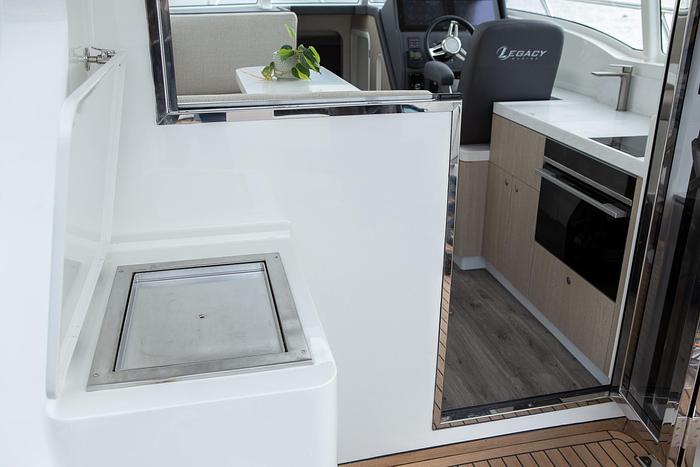

COCKPIT

- Teak ooring throughout -

Transom entry door to portSide storage cupboards to port and starboardLivebait tank aft and to centreHawse hole aft to port and starboard for mooring linesCleats throughoutWork bench fwd and to starboard with incorporatedWork bench fwd and to starboardwith incorporated sink and cover

Head lining, leather like with backing Entry door aft and to centre, high quality polished stainless frame with tinted glass inllExterior LED lighting under roof overhang to cockpitAC and DC power points throughout Flush mounted speakers throughout Storage overhead benchCook top in bench surfaceOverhead LED lightingFixed pain window to starboard highly polished stainless frame with tinted glass

L35

STANDARD INCLUSIONS

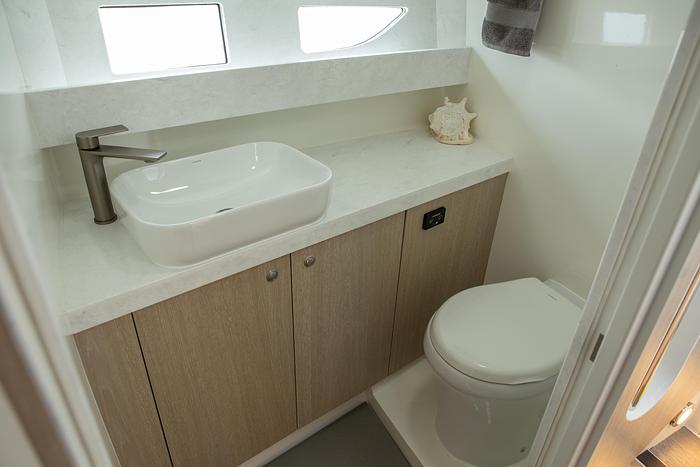

BATHROOM AND HEAD

- Situated to starboard adjacent to owners and guest accommodation

- Private entry door- Vacuush head to aft

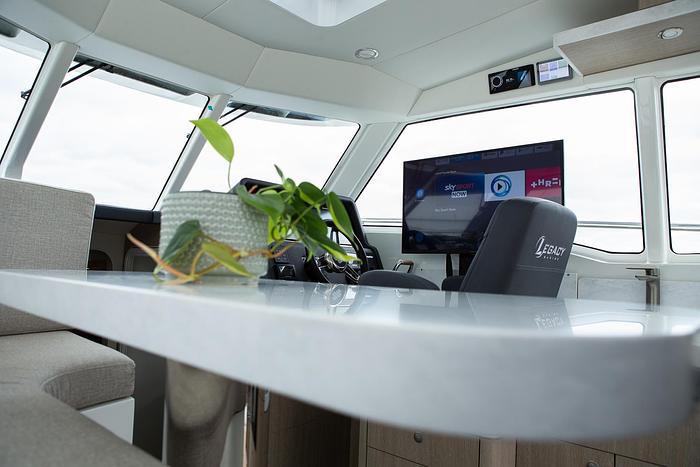

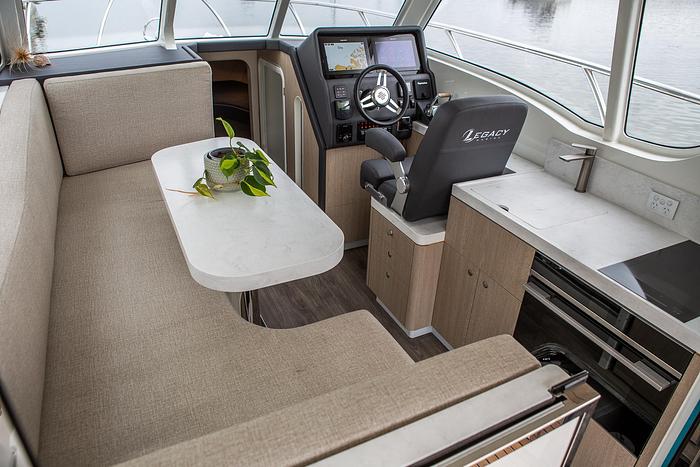

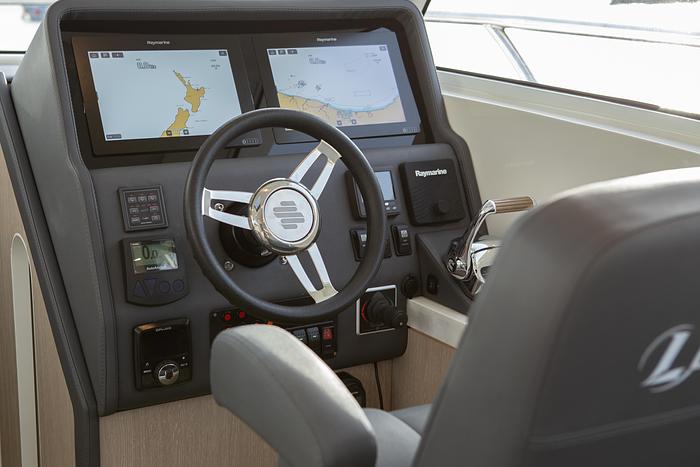

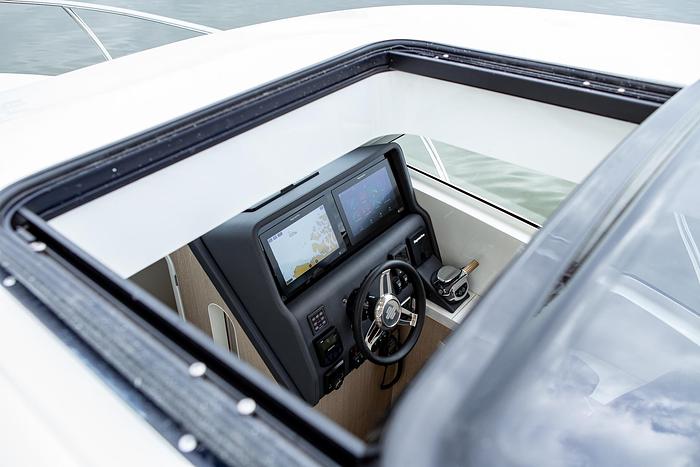

HELM

- High quality captains seat- Ergonomic dash layout with most used controls in arms reach- Well laid out dash including all nav and communication equipment - Anchor winch controls including chain counter- Camera display for engine room and cockpit if selected- Engine management guages- Power assisted steering- Glove box- Cup holders x 2

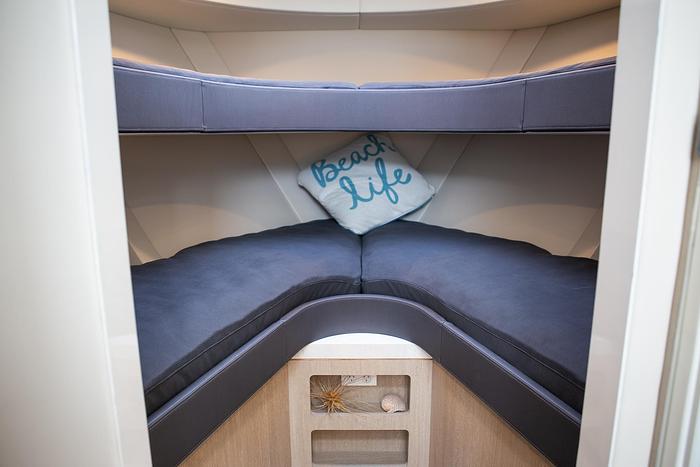

GUEST ACCOMMODATION

- Forward to port and starboard vee style single berth x 2 - Private entry door- Hanging locker to port- Large under berth storage

- Vanity and mirror to starboard - Shower cubicle fwd- Cupboard storage under vanity - Quality tapware

- Overhead LED lighting- AC and DC power points throughout

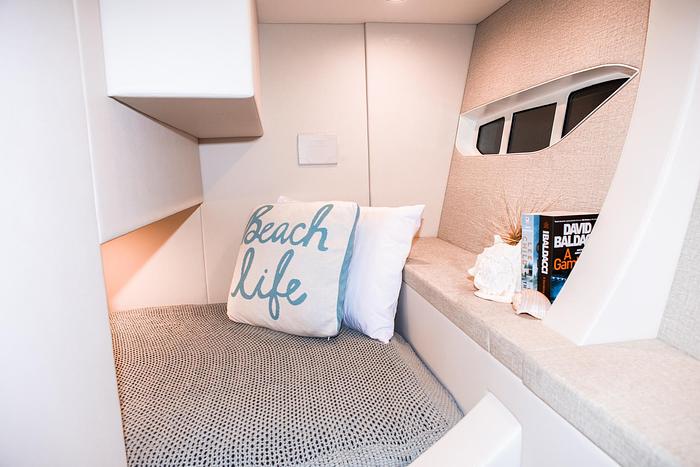

OWNERS ACCOMMODATION

- Situated aft to centre- Double berth to starboard - Single berth to port- Hanging locker- Private entry door- Large under berth storage - Overhead LED lighting- AC and DC power

- V.H.F- G.P.S- Auto pilot- Radar- Fish nder- Audio controls- Tank level monitoring - Compass

points

L32

CEPT ARRANGMENTS

L325 CSOTNACNEDPATRADRIRNACNLUGSMIOENTSS

10584

MASE GENERATOR 2KW

750

50mm CAMBER

DATUM WATERLINE

STERN THRUSTER;VETUS 42kgF 125mm TUNNEL ID

PORTSIDE PROFILE

L32 220

1 x CUMMINS QSB 6.7 480HP @ 3300rpm ZF 286 A @ 2.5:1 RATIO (LIGHT DUTY) ZF 85A @ 2.5:1 RATIO (PLEASURE DUTY)

660mm DIAMATER PROPELLER

GYRO; SEAKEEPER 2

WATER ~150 LTR

BLACK WATER TANK 80 LTR

HEAD COMPARTMENT SOLE

COLLISION BLKD

BOW THRUSTER;VETUS 42kgF 125mm TUNNEL ID

RUDDER BOTTOM EDGE 75mm ABOVE PROPELLER UNDERSIDE

9321

10193mm MNZ 40A LOA MEASUREMENT

1056

205

1866

2000

1974

L32

EPT ARRANGMENTS CONCEPT ARRANGMENTS

L35

PASSIVE LIVE BAIT TANKS PORT AND STBD

STEP OVER

STEP OVER

LIVEBAIT TANK WITH TUNA TUBES

COCKPIT HATCHES

DROP DOWN WINDOW (PILLARLESS)

ENGINE ROOM AIR; IN = PORTOUT = STBD

85 LITRE FRIDGE UNDER SETTEE

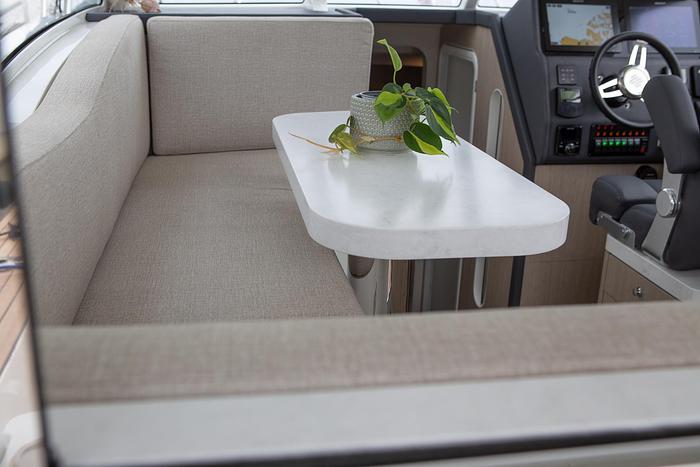

DINETTE

ENGINE ROOM MAIN HATCH

COCKPIT WORK STATION; - TACKLE DRAWERS- BBQ HOTPLATE- GAS BOTTLE

- SINK ETC

ENGINE ROOM HATCH

GALLEY: SINK COOKER MICROWAVE

HINGING HELM SEAT WITH BENCH UNDER. 10,000BTU AC UNIT

2 x 12" MFD SCREENS+ MAIN SWITCH BOARD

CABIN SKYLIGHT / HATCH

2866

2452

3313

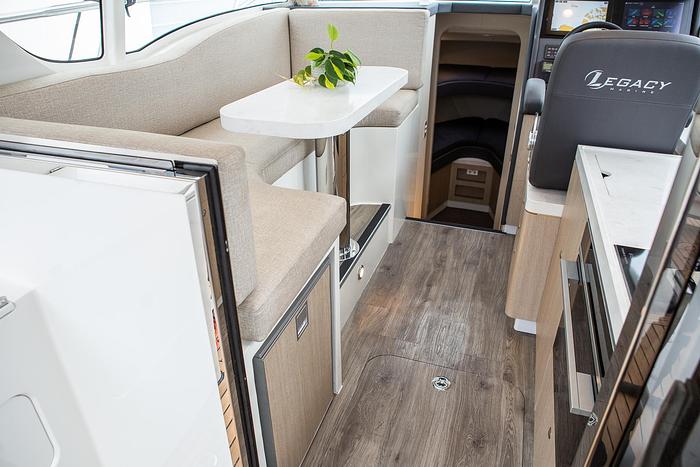

SALOON AND COCKPIT PLAN

DOWN

RC8 / RC 10 ANCHOR WINCH

L35

CONCEPT ARRANGMENTS

ZIPWAKE 450 OR SIMILAR INTERCEPTORS

MASE GENERATOR 2KW

GYRO: SEAKEEPER 2

OPENING PORTLIGHT PORT AND STBD

TRIPLE BERTH CABIN

HANGING LOCKER

BLACK WATER TANK 80 LTR

HINGE UP SECTION

FUEL ~350 LTR

FUEL ~350 LTR

ISOTHERM BASIC 40L HOT WATER CYLINDER

TRANSOM MOUNTED STERN THRUSTER

TWIN RUDDERS

1 x CUMMINS QSB 6.7 480HP @ 3300rpm ZF 286 A @ 2.5:1 RATIO (LIGHT DUTY)ZF 85A @ 2.5:1 RATIO (PLEASURE DUTY)

VARIOUS EQUIPMENT(WEIGHT ESTIMATE PLACE HOLDERS)

LOWER PLAN

WATER ~150 LTR

HEAD AND SHOWER COMPARTMENT (SOLE 130mm STEP UP) WITH NATURAL LIGHT AND AIR EXTRACTION

TRIPLE SINGLE BUNKS WITH STOWAGE

OPENING PORTLIGHT

WWW.LEGACYMARINE.CO.NZ E-MAIL: TODD@LEGACYMARINE.CO.NZ

746

HOUSE BATTERY

RAINMAN WATERMAKER 24DC INCL CASE

START BATTERY

1984

728
